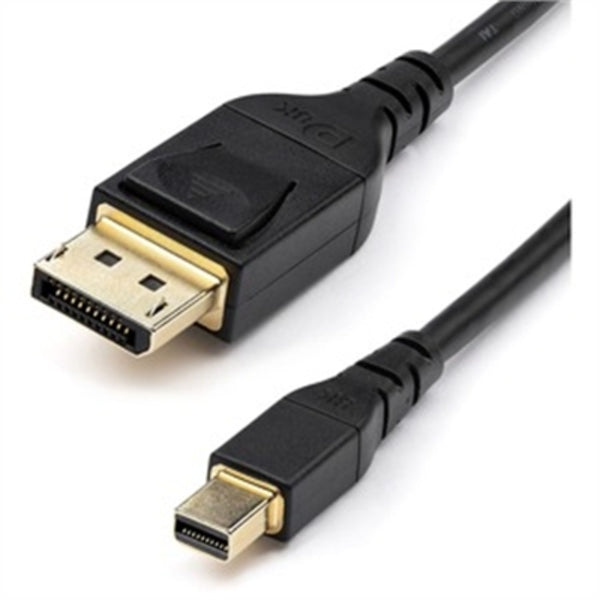

6.6ft VESA Certified mini DP to DisplayPort 1.4 cable | 8K 60Hz (7680x4320) or 4K 120Hz w/DSC 1.2 | HDR HBR3 HDCP 2.2 | 32ch audio - Strain relief absorbs bend stress | Slim 34 AWG cable - Works w/ mDP 1.2/Thunderbolt 2 hosts - Nvidia/AMD video cards
General Information
Manufacturer: StarTech.comManufacturer Part Number: DP14MDPMM2MB
Brand Name: StarTech.com
Product Name: Mini Displayport to Displayport Cable
Marketing Information: This 2 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection.
Astonishing Picture Quality This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports:
- Multi-Stream Transport (MST) for daisy chaining multiple monitors.
- Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio.
- HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards.
- Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate.
- Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays.
Ultimate Compatibility This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as:
- Radeon VII, SSG, WX x100, Pro and FirePro series.
- Nvidia Quadro P series.
Built to Last This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications.
Having 34 AWG conductors and 4.5mm outer diameter, this slim cable offers both flexibility and ease of connection.
The DP14MDPMM2MB is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort/Mini DisplayPortCable Length: 6.56 ft
Connector on First End: 1 x 20-pin DisplayPort Male DisplayPort 1.4 Digital Audio/Video
Connector on Second End: 1 x 20-pin Mini DisplayPort Male Mini DisplayPort 1.2 Digital Audio/Video
Connector Plating: Gold
Features: Bend Resistant
Features: Display Stream Compression (DSC) 1.2
Features: DPCP
Features: EMI Protection
Features: Forward Error Correction (FEC) Support
Features: HDCP 2.2
Features: Latching Connector
Features: Multi-Stream Transport (MST) Support
Features: Strain Relief
Features: Stress Resistant
Features: Tarnish Resistant
Shielding: Yes
Device Supported: Audio/Video Device
Device Supported: Computer
Device Supported: Graphics Card
Device Supported: MAC
Device Supported: Monitor
Device Supported: Notebook
Device Supported: PC
Device Supported: Projector
Device Supported: TV
Device Supported: Workstation
American Wire Gauge: 34 AWG
Data Transfer Rate: 32.4 Gbit/s
Supported Resolution: 7680 x 4320
Physical Characteristics
Color: BlackJacket Material: Polyvinyl Chloride (PVC)
Miscellaneous
Compatibility: Nvidia Quadro Graphic Cards:- P620
- P600
- P400
- Radeon Pro VII
- Radeon Pro SSG
- Radeon Pro WX9100
- Radeon Pro WX4100
- Radeon Pro WX3200
- Radeon Pro WX3100
- Radeon Pro WX2100
- Radeon Pro W5700
- Radeon Pro W5500
- FirePro W9100
- FirePro 900
- FirePro 600
- FirePro 4100
Country of Origin: China
Warranty
Limited Warranty: LifetimeWarranty : Lifetime Warranty
