General Information

Manufacturer: TP-LINK Technologies Co., Ltd
Brand Name: TP-Link
Product Line: Omada
Product Model: EAP245 V3

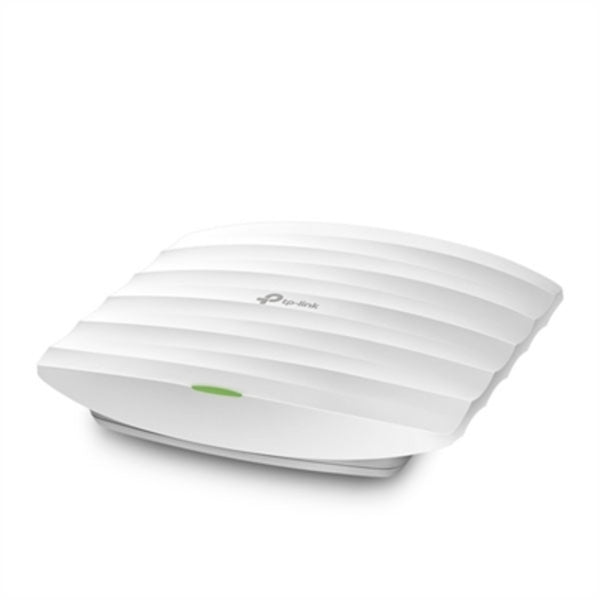

Product Name: AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Marketing Information: Business-Class Wi-Fi Solution

Omada provides a business-class wireless network solution that's flexible, manageable, secure, and easy-to-deploy. Featuring cloud access, Omada Cloud Controller OC200 or Omada Software Controller allow users to centrally manage the entire Omada networks in the remote site. And the intuitive Omada app makes network management incredibly convenient. Omada EAPs also feature captive portal and advanced RF management functions, which make them ideal for demanding, high-traffic environments such as campuses, hotels, malls and offices.

Highlights

Impressive Performance

Enterprise-class chipsets, 802.11ac Wi-Fi standard, MU-MIMO, Seamless Roaming, and Mesh combine to ensure outstanding performance and reliability.

Centralized Management

Omada Cloud Controller OC200 or Omada Software Controller allows users to centrally manage the entire Omada networks.

Free Cloud Service

Remote management via the cloud is totally free and stays that way - no license or maintenance fees.

Easy to Use

No special training required to use the Omada products with the user-friendly and intuitive design.
Product Type: Wireless Access Point

Technical Information

Wireless LAN Standard: IEEE 802.11ac
Network Band: Dual Band
Frequency Band: 2.40 GHz
Frequency Band: 5 GHz
Total Number of Antennas: 3
Number of Internal Antennas: 3
Indoor/Outdoor: Outdoor
Wireless Transmission Speed: 1.71 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard: 128-bit WEP
Encryption Standard: 152-bit WEP
Encryption Standard: 64-bit WEP
Encryption Standard: WPA
Encryption Standard: WPA2-ENT
Encryption Standard: WPA2-PSK
Encryption Standard: WPA3-PSK

Interfaces/Ports

Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes

Physical Characteristics

Form Factor: Ceiling Mountable
Form Factor: Wall Mountable
Antenna Form Factor: Internal
Height: 1.5"
Width: 8.1"
Depth: 7.2"

Miscellaneous

Package Contents:

• AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
• 5 Mounting Kits
• 1 Installation Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
